Industrial Strainers – Bluzac

Permanent filter, straight line, suitable for filtering fluids in either liquid state (water, seawater, petroleum and its derivatives) or gaseous state (gas, air, chemical products). It’s Obtained from a welded Y-joint.

The full Y filter is suitable for special applications.
It is designed and machined from a single block of material and it’s available in all standard and non-standard materials.

Obtained from a machined forged billet, it is available in all standard materials (Carbon steel WCB Stainless Steel CF8M) and non-standard materials (Duplex S31803, Super Duplex S32750, Inconel, Hastelloy, Cunifer, etc.).

Obtained by casting in sand casts, it is available in all standard materials (Carbon steel WCB Stainless Steel CF8M) and non-standard materials (Duplex S31803, Super Duplex S32750, Inconel, Hastelloy, Cunifer, etc.).

Permanent filter type, offering a larger filtering surface area than other filters, ensures minimal loss of pressure, even at high flow speeds. Simplex  basket filter comprises a cylindrical body with connecting flanges arranged perpendicularly to the filter element. Its filter element consists of a rolled perforated sheet. Our Monobasket Filter is suitable for high pressures and it’s easy to maintain and replace.

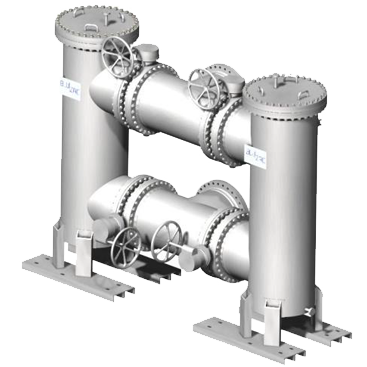

Comprises two chambers which permit the filter to function continuously, even during maintenance of the basket. It allows the operator to clean the basket without necessarily shutting down the entire line. The transition between online and standby can be done by using the integrated valve system, controlled by a single lever. Duplex Filter is suitable for high pressures, easy to maintain and replace.

Straight line or right angle, suitable for filtering fluids in either the liquid state (water, seawater, petroleum and its derivatives) or the gaseous state, through a perforated plate filter element placed perpendicularly to the direction of flow. Includes a series of coalescing cartridge filters capable of retaining even extremely small particles of approximately three microns or 0.003mm.

The TEE Type Strainer is a permanent filter, straight line, suitable for filtering fluids in either the liquid state (water, seawater, petroleum and its derivatives) or the gaseous state (gas, air, chemical products) through a perforated plate filter element placed perpendicular to the direction of flow.

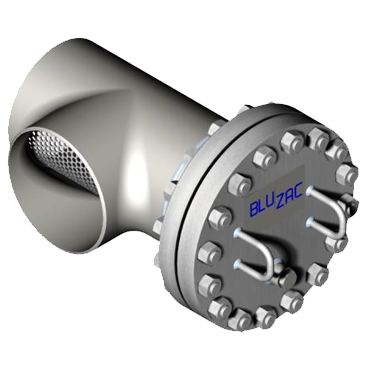

The Angle T Strainer is a permanent filter, right angle, suitable for filtering fluids in either the liquid state (water, seawater, petroleum and its derivatives) or the gaseous state (gas, air, chemical products) through a perforated plate filter element placed perpendicular to the direction of flow.

Witch Hat Strainer comprises a rolled perforated sheet in the form of a cone welded perpendicularly to a ring joint. The conical filter is easy to install and replace because it is positioned between two flanges of a pipe.
It’s suitable for high pressures, easy to maintain and replace and capable of filtering more than 200% of the inlet area.
